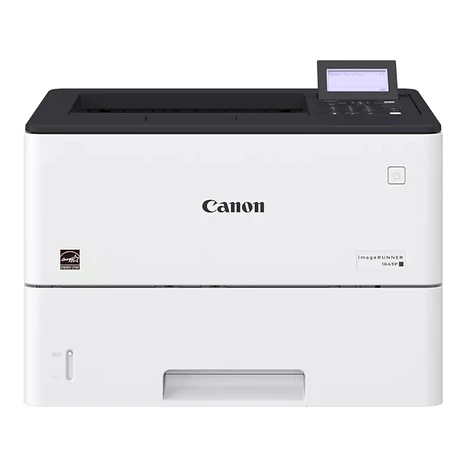

Canon imageRUNNER 1643P 45 ppm monochrome single-function office printer

CanonimageRUNNER 1643P

A proven 45 ppm desktop printer for small offices that want simple, reliable black-and-white.

Best for: Small businesses replacing an aging desktop printer with a dependable, low-cost-per-page unit

  • Speed: 45 ppm
  • Output: Mono
  • Max size: Legal
Request a quote Brochure (PDF)

Overview

About the imageRUNNER 1643P

The imageRUNNER 1643P is the single-function printer in Canon's imageRUNNER 1643 series — a 45-page-per-minute black-and-white A4 desktop printer built for small businesses and workgroups that want fast, dependable output and easy fleet management without paying for copy or scan. It delivers a first print in about 5.7 seconds, wakes from sleep in 3 seconds, and takes the same 550-sheet feeders as its multifunction siblings for up to 2,300 sheets.

The imageRUNNER 1643 series prints at 600 × 600 dpi with a 20,500-page toner cartridge for a low cost per page. UFR II LT, PCL 5e/6, and Adobe PostScript 3 are standard on the 1643P, along with direct printing from USB memory. Print from Windows, Mac, and mobile devices through the network; wireless LAN is not standard on this model.

A 3.5-inch 5-line LCD panel handles settings, and imageWARE Enterprise Management Console monitors supplies and alerts you when service is needed. Secure Print, IPsec, TLS, and IEEE 802.1X are standard, and the device has no hard disk, so confidential information isn't stored locally.

Key features

What it does well

  • 45 ppm with a 5.7-second first print

    Fast engine start and 600 × 600 dpi output for everyday reports, forms, and correspondence; 3-second wake from sleep.

  • Fits where an MFP won't

    About 16 inches wide and 11 inches tall at 25.3 lb — a desk, shelf, or credenza is enough.

  • PostScript and PCL standard

    UFR II LT, PCL 5e/6, and Adobe PostScript 3 built in, plus direct print of PDF, TIFF, JPEG, and XPS from USB memory or LPR.

  • Security without a hard disk

    Secure Print, IPsec, TLS, SNMPv3, IEEE 802.1X, and IP/MAC filtering standard. No hard disk means no confidential data stored on the device.

  • 650 to 2,300 sheets, Legal size

    A 550-sheet cassette and 100-sheet bypass standard; add up to three 550-sheet Paper Feeder PF-C1 units and Cabinet Type-S.

  • Low cost per page, low energy

    A 20,500-page toner cartridge, 0.50 kWh typical weekly consumption, ENERGY STAR® certified and rated EPEAT Silver.

Included with every system

What comes with it when you buy from ABC

The imageRUNNER 1643P is the same everywhere. What's different is the 44 years of local service behind it.

  • Delivery, setup, and network install

    We deliver, unbox, place, and connect the device to your network and every workstation that needs it. You print the first page before we leave.

  • On-site training for your team

    A Canon-certified technician walks your staff through the panel, scanning workflows, and the everyday things that generate service calls when nobody explains them.

  • Genuine Canon toner, auto-shipped

    Supplies ship before you run out, based on your device's own meter readings. Genuine Canon consumables only, so your warranty and image quality stay intact.

  • Same-day service standard

    Local technicians dispatched from our office in Old Hickory, not a national ticket queue. Average response is under four hours.

  • Plain-language agreements

    Lease, rent, or buy. Separate color and mono cost-per-page, no hidden escalators, and a person who answers questions about the contract by name.

  • One dedicated account manager

    The same person from proposal through the life of the system. They know your account, your volumes, and when it's time to talk about what's next.

Get in Touch

Call, email, or send a message — whichever is easiest for you. We'll take it from there.

Specifications

The numbers

Full spec sheet (PDF)
General
Technology / type
Laser, A4 monochrome single-function desktop printer
Core functions
Print only (copy, scan, and fax are not available on this model)
Control panel
3.5-inch 5-line LCD
Print
Print / copy speed
Up to 45 ppm (Letter); 36 ppm (Legal)
First-copy time (BW / color)
First print approx. 5.7 seconds (black-and-white output only)
Print resolution
600 × 600 dpi
Page description languages
UFR II LT, PCL 5e / PCL 6, Adobe PostScript 3 (standard)
Mobile and cloud printing
Mobile printing from compatible devices over the network; optional uniFLOW and uniFLOW Online
Print security features
Secure Print
Warm-up time
From Power On: 30 seconds or less; from Sleep: 3 seconds or less
USB direct print formats
TIFF, JPEG, PDF, XPS (from USB memory or LPR)
Paper handling
Paper capacity (Letter, 20 lb bond)
Standard 650 sheets (550-sheet cassette + 100-sheet stack bypass); maximum 2,300 sheets
Maximum paper size
8-1/2 × 14 (Legal) from the cassette and bypass; no ledger support
Media weights
Cassette: 16–32 lb bond (60–120 gsm). Bypass: 16 lb bond to 73 lb cover (60–199 gsm)
Media types
Thin, plain, thick, color, recycled, bond; bypass adds envelopes (C5, DL, COM10, Monarch)
Paper feeding options
Paper Feeder PF-C1 (550 sheets, to Legal; up to three); Cabinet Type-S recommended for two- or three-feeder setups
Finishing options
Output capacity (Letter, 20 lb bond)
150 sheets
Connectivity
Network
Gigabit Ethernet standard; wireless LAN not standard on the 1643P
USB
Three USB 2.0 host ports, USB 2.0 device
Operating systems
Windows, Windows Server, macOS, Linux
Software and management
Workflow and cloud
Optional uniFLOW and uniFLOW Online for secure release, tracking, and chargeback
Fleet management
imageWARE Enterprise Management Console and plug-ins: supply and service alerts, remote status, and settings
Firmware
Canon device firmware with remote update through imageWARE Enterprise Management Console
Security
Authentication
Department ID standard; optional uniFLOW and uniFLOW Online
Device security
No hard disk; confidential information is not stored locally on the device
Network and auditing
IP/MAC address filtering, IPsec, TLS encrypted communication, SNMPv3, IEEE 802.1X, IPv6
System
Processor
Canon dual custom processor
Memory
1.0 GB RAM
Storage
No hard disk; optional SD card
Physical
Dimensions (W × D × H)
16-1/8 × 14-13/16 × 10-13/16 in (409 × 376 × 275 mm)
Weight
Approx. 25.3 lb (11.5 kg), including consumables
Frame
Desktop chassis; optional Cabinet Type-S for floor-standing setups
Environmental
Certifications
ENERGY STAR® certified; EPEAT Silver
Power
120–127 V, 60 Hz, 7.1 A; typical electricity consumption 0.50 kWh/week

Specifications are summarized from Canon's published materials and can change; confirm details on the Canon spec sheet or with our team before ordering.
