American Business Copiers
All monochrome solutions

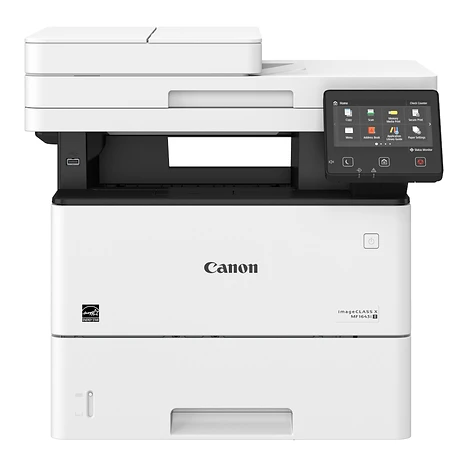

Canon imageCLASS X MF1643i II monochrome multifunction printer for productive offices

CanonimageCLASS X MF1643i II

45 ppm black-and-white print, copy, and scan with room for 2,300 sheets, without the fax.

Best for: Small and mid-size workgroups that need a black-and-white MFP with expandable paper capacity and no fax line

  • Speed: 45 ppm
  • Output: Mono
  • Max size: Legal
Request a quote Brochure (PDF)

Overview

About the imageCLASS X MF1643i II

The imageCLASS X MF1643i II is the non-fax model in Canon's MF1643 II series — a 45-page-per-minute black-and-white desktop multifunction printer for small to mid-size workgroups in an office or home environment that are part of an organization's print fleet. It prints, copies, scans, and sends; Adobe PostScript 3 is available as an option. First print is about 5.6 seconds, first copy about 6 seconds, and it wakes from sleep in 4 seconds. The MF1643iF II adds Super G3 fax and standard PostScript.

The MF1643 II series prints at up to 1200 dpi equivalent with UFR II and PCL standard, two-sided printing out of the box, and direct print from USB memory. The single-pass duplex feeder scans both sides of a page at up to 70 images per minute to email, network folders, or USB as searchable, compact, encrypted, or digitally signed PDF, and with uniFLOW Online can scan directly into Dropbox, Google Drive, OneDrive, and Evernote. Print from Windows, Mac, iOS, and Android devices with AirPrint, Mopria, or the Canon PRINT app; Wi-Fi, Wi-Fi Direct, and Gigabit Ethernet are all standard. Paper capacity starts at 650 sheets and grows to 2,300 with up to three optional 550-sheet cassettes, and the T06 toner is rated for up to 20,500 pages.

The 5-inch color touchscreen can be customized by an administrator, and Application Library adds one-touch buttons for ID card copy, passport copy, scan-to-preset, and cloud apps. Documents are held in short-term memory only, Verify System at Startup checks firmware and Application Library at boot, a Send-to-Myself-Only restriction limits distribution, and imageWARE Enterprise Management Console pushes security settings to every device on the network.

Key features

What it does well

  • 45 ppm with a 5.6-second first print

    A first page in about 5.6 seconds, a first copy in about 6, and 45 pages a minute on Letter at up to 1200 dpi equivalent; it wakes from sleep in 4 seconds.

  • Single-pass duplex scanning

    Both sides of a page in one pass at up to 70 ipm black-and-white or 26 ipm color from the 50-sheet feeder, to email, folders, or USB as searchable PDF. Fax is not included; see the MF1643iF II.

  • Scan straight to the cloud

    Application Library's Cloud App prints or scans directly to Dropbox, Google Drive, or OneDrive, and uniFLOW Online adds secure scanning into Evernote and OneDrive for Business.

  • Print from any device

    AirPrint, Mopria, Canon PRINT, and optional uniFLOW secure mobile printing. Wi-Fi, Wi-Fi Direct, and Gigabit Ethernet are all standard.

  • Nothing confidential stays on the device

    Documents are held in short-term memory only. Verify System at Startup checks firmware and Application Library at boot, and a Send-to-Myself-Only restriction limits where scans can go.

  • 650 to 2,300 sheets, Legal size

    A 550-sheet cassette and 100-sheet multipurpose tray standard; add up to three 550-sheet Paper Feeder PF-C1 units, with Cabinet Stand Type-S for a floor-standing configuration. The T06 toner is rated for 20,500 pages.

Included with every system

What comes with it when you buy from ABC

The imageCLASS X MF1643i II is the same everywhere. What's different is the 44 years of local service behind it.

  • Delivery, setup, and network install

    We deliver, unbox, place, and connect the device to your network and every workstation that needs it. You print the first page before we leave.

  • On-site training for your team

    A Canon-certified technician walks your staff through the panel, scanning workflows, and the everyday things that generate service calls when nobody explains them.

  • Genuine Canon toner, auto-shipped

    Supplies ship before you run out, based on your device's own meter readings. Genuine Canon consumables only, so your warranty and image quality stay intact.

  • Same-day service standard

    Local technicians dispatched from our office in Old Hickory, not a national ticket queue. Average response is under four hours.

  • Plain-language agreements

    Lease, rent, or buy. Separate color and mono cost-per-page, no hidden escalators, and a person who answers questions about the contract by name.

  • One dedicated account manager

    The same person from proposal through the life of the system. They know your account, your volumes, and when it's time to talk about what's next.

Get in Touch

Call, email, or send a message — whichever is easiest for you. We'll take it from there.

Specifications

The numbers

Full spec sheet (PDF)
General
Technology / type
Laser, A4 monochrome multifunction desktop printer
Core functions
Print, copy, scan, send (fax is not available; see the MF1643iF II)
Control panel
5-inch color touchscreen
Print
Print / copy speed
Up to 45 ppm (Letter); 36 ppm (Legal)
First-copy time (BW / color)
First print approx. 5.6 seconds; first copy approx. 6.0 seconds (black-and-white output only)
Print resolution
Up to 1200 × 1200 dpi (equivalent)
Page description languages
UFR II, PCL 6 / PCL 5 (standard); Adobe PostScript 3 (optional on the MF1643i II)
Mobile and cloud printing
AirPrint, Mopria, Canon PRINT, and uniFLOW secure mobile printing (optional)
Print security features
Secure Print; uniFLOW Secure Print with optional uniFLOW or uniFLOW Online
Warm-up time
From Power On: 14 seconds or less; from Sleep: 4 seconds or less
Scan
Scan speed (BW / color, Letter)
Duplex: up to 70 / 26 ipm (300 dpi). Single-sided: up to 38 / 13 ipm (300 dpi)
Document feeder
Single-pass duplex automatic document feeder, 50 sheets, originals to 8-1/2 × 14
Scan destinations
Email, network folders (SMB, FTP), USB memory, PC (TWAIN/WIA), Internet fax; Dropbox, Google Drive, and OneDrive through Application Library Cloud App; Evernote and OneDrive for Business with optional uniFLOW Online
File formats
PDF (Compact, Searchable, Encrypted, digitally signed), TIFF, JPEG
Paper handling
Paper capacity (Letter, 20 lb bond)
Standard 650 sheets (550-sheet cassette + 100-sheet multipurpose tray); maximum 2,300 sheets
Maximum paper size
8-1/2 × 14 (Legal) from the cassette and multipurpose tray; no ledger support
Media weights
Cassettes: 16–32 lb bond (60–120 gsm). Multipurpose tray: 16 lb bond to 73 lb cover (60–199 gsm)
Media types
Thin, plain, recycled, color, thick, bond; multipurpose tray adds labels and envelopes
Paper feeding options
Paper Feeder PF-C1 (550 sheets, to Legal; up to three); Cabinet Stand Type-S for a floor-standing configuration
Finishing options
Output capacity (Letter, 20 lb bond)
150 sheets
Connectivity
Network
Gigabit Ethernet, wireless LAN (802.11 b/g/n), and Wi-Fi Direct standard
USB
Two USB 2.0 host ports, USB 2.0 device
Operating systems
Windows, macOS, iOS, iPadOS, Android
Software and management
Workflow and cloud
Optional uniFLOW or uniFLOW Online for secure print release, cost tracking, job routing, and scan-to-cloud; Application Library platform for one-touch functions
Fleet management
imageWARE Enterprise Management Console with Device Configuration Manager plug-in to capture and export security settings across a fleet; imageWARE Remote for remote diagnosis
Firmware
Canon imageCLASS X firmware with remote update through the Local Content Delivery System
Security
Authentication
Department ID and Embedded Universal Login Manager; optional uniFLOW or uniFLOW Online; optional MiCard proximity and Copy Card Reader-F1 magnetic-stripe readers
Device security
Documents held in short-term memory only; Verify System at Startup; Standard Storage Initialize; Job Log Conceal; Send-to-Myself-Only restriction; encrypted PDF and device signature
Network and auditing
TLS 1.3, IPSec, IEEE 802.1X, SNMP v3, IPv6, IP/MAC address filtering; administrator password, digital certificate and key management, security policy settings
System
Processor
Canon custom processor
Memory
1 GB RAM
Physical
Dimensions (W × D × H)
18-7/8 × 15-5/16 × 17-13/16 in (480 × 465 × 452 mm)
Weight
Approx. 41.9 lb (19.0 kg), including consumables
Frame
Desktop chassis; optional Cabinet Stand Type-S
Environmental
Certifications
ENERGY STAR® certified; EPEAT Silver
Power
110–127 V, 7.1 A, 60 Hz; approx. 1,440 W maximum, 17 W standby, 0.9 W sleep; TEC 1.3 kWh

Specifications are summarized from Canon's published materials and can change; confirm details on the Canon spec sheet or with our team before ordering.
