imageFORCE 4145
The 45-ppm workhorse for the office that prints in black-and-white all day.
Best for: Small to mid-size offices that need dependable, high-volume black-and-white printing and fast color scanning
- Speed: 45 ppm
- Output: Mono
- Max size: Ledger
Overview

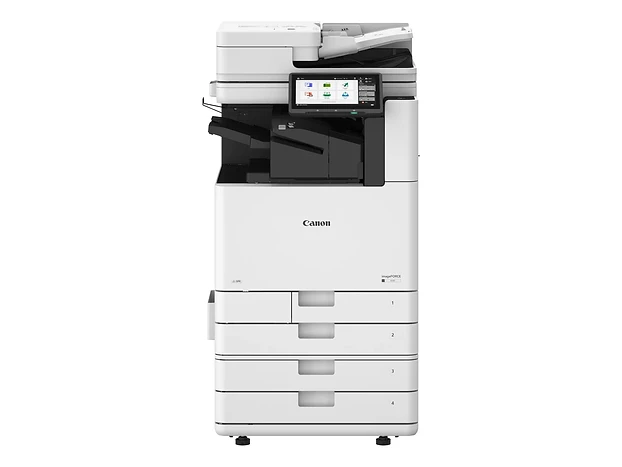

About the imageFORCE 4145
The imageFORCE 4145 is the 45-page-per-minute model in Canon's 4100 series — the top of the range, for small to mid-size offices where the copier runs most of the day. Introduced in May 2026, the 4100 series is the black-and-white counterpart to the color C3100 series and the successor to the imageRUNNER ADVANCE DX 4900 series, bringing the imageFORCE imaging engine, 10.1-inch touchscreen, Unified Firmware Platform, and security stack to monochrome A3 printing.
Canon's D² Exposure technology uses OLED solid-state imaging to reach 4800 × 2400 dpi, with sharp text and deep, uniform black-and-white tones. Scanning is full color: with the optional 200-sheet Single Pass DADF-E1, both sides of a page are captured at up to 270 images per minute and sent as searchable PDFs or editable Word and PowerPoint files to email, folders, USB, or the cloud. Print from Windows, Mac, iOS, Android, and Chrome OS devices with AirPrint, Mopria, Universal Print, or the Canon PRINT app — no driver required. Paper capacity starts at 1,200 sheets and grows to 6,350 with optional cassettes and decks; the lower cassette and multipurpose tray handle stock up to 12 × 18, and a long-sheet tray option runs banners to 47.25 inches.
Every imageFORCE model shares the same touchscreen interface and Canon's Unified Firmware Platform, so the device keeps gaining features through regular updates. Print, copy, scan, send, and store are standard; fax (up to four lines) is optional, as is uniFLOW Online for cloud print management and cost tracking.
Key features
What it does well
45 ppm black-and-white with A3 paper handling
Prints and copies at up to 45 pages per minute on Letter, with 11 × 17 and 12 × 18 from the lower cassette and multipurpose tray. The 4100 series shares one engine; the 4145, 4135, and 4125 differ only in licensed speed, so the device can be upgraded as volume grows.
D² Exposure imaging at 4800 dpi
OLED solid-state exposure delivers 4800 × 2400 dpi resolution with sharp, uniform text and deep black-and-white tones — the same imaging technology as Canon's color imageFORCE models, tuned for monochrome output.
Color scanning up to 270 ipm
Black-and-white printing doesn't limit scanning: with the Single Pass DADF-E1 (200 sheets), both sides of a page are captured in one pass at up to 270 images per minute in full color. Scans go to email, network folders, USB, mobile devices, or the cloud as searchable PDF, PDF/A, or editable Word and PowerPoint files. A 100-sheet DADF-F1 (120 ipm) or a platen cover are the alternatives.
Print from any device
AirPrint, Mopria, IPP Everywhere, Canon PRINT, Universal Print, and the optional Cloud Connector — phones, tablets, and laptops print without a driver install. PCL, PostScript 3, and UFR II are standard.
Security designed into the device
Secure Print and Forced Hold keep jobs at the device until the owner signs in by PIN, password, picture, card, or mobile. Security Environment Estimation recommends settings for your network, Verify System at Startup checks firmware for tampering with automatic recovery, storage is encrypted to FIPS 140-3, Trellix™ Embedded Control whitelists what can run, and SIEM integration feeds your monitoring.
One interface across the whole lineup
A large 10.1-inch responsive touchscreen with color-coded icons and customizable language, accessibility, and display settings — the same on every imageFORCE model, so anyone trained on one can run another.
Media and finishing that fit the job
Runs stock from 14 lb bond to 140 lb index, envelopes, and sheets up to 12 × 18 — or 47.25-inch banners with the long-sheet option. Paper capacity grows from 1,200 to 6,350 sheets, and optional inner, staple, and booklet finishers add stapling, staple-free stapling, hole punching, and saddle-stitched booklets.
Low-impact by design
Efficient fusing and low-melting-point toner keep energy use down. ENERGY STAR® certified and rated EPEAT Gold, and shipped in recyclable cardboard packaging instead of foam.
Included with every system
What comes with it when you buy from ABC
The imageFORCE 4145 is the same everywhere. What's different is the 44 years of local service behind it.
Delivery, setup, and network install
We deliver, unbox, place, and connect the device to your network and every workstation that needs it. You print the first page before we leave.
On-site training for your team
A Canon-certified technician walks your staff through the panel, scanning workflows, and the everyday things that generate service calls when nobody explains them.
Genuine Canon toner, auto-shipped
Supplies ship before you run out, based on your device's own meter readings. Genuine Canon consumables only, so your warranty and image quality stay intact.
Same-day service standard
Local technicians dispatched from our office in Old Hickory, not a national ticket queue. Average response is under four hours.
Plain-language agreements
Lease, rent, or buy. Separate color and mono cost-per-page, no hidden escalators, and a person who answers questions about the contract by name.
One dedicated account manager
The same person from proposal through the life of the system. They know your account, your volumes, and when it's time to talk about what's next.
Related models
Also worth a look
Other imageFORCE models and nearby monochrome options.
imageFORCE 1643F
Best for: Small businesses and workgroups that need print, copy, scan, and fax in one compact device
- Speed: 45 ppm
- Output: Mono
- Max size: Legal
imageFORCE 1440F
Best for: Small and home offices that need a complete black-and-white MFP on a desk
- Speed: 42 ppm
- Output: Mono
- Max size: Legal
Get in Touch
Call, email, or send a message — whichever is easiest for you. We'll take it from there.
Specifications
The numbers
General
- Technology / type
- OLED, A3 monochrome multifunction
- Core functions
- Standard: print, copy, scan, send, store. Optional: fax (up to 4 lines)
- Control panel
- 10.1-inch color touchscreen
Print
- Print / copy speed (BW)
- Up to 45 ppm (Letter); 32 ppm (Letter-R); 25 ppm (Legal); 22 ppm (11 × 17)
- Print resolution
- Up to 4800 × 2400 dpi (D² Exposure)
- Page description languages
- UFR II, PCL 6 / PCL 5, Adobe PostScript 3 (standard)
- Mobile and cloud printing
- AirPrint, Mopria, IPP Everywhere, Canon PRINT, Universal Print, uniFLOW Online, and Cloud Connector (optional)
- Print security features
- Secure Print, Encrypted Secure Print, Forced Hold Printing, Secure Watermark, Scheduled Printing
- Warm-up time
- Quick Startup: 4 seconds or less; from Sleep: 10 seconds or less; from Power On: 10 seconds or less
Scan
- Scan speed with Single Pass DADF-E1 (BW / color, Letter)
- Duplex: up to 270 / 270 ipm (300 dpi, send), 160 / 160 ipm (600 dpi, copy). Single-sided: up to 135 / 135 ipm (300 dpi, send), 80 / 80 ipm (600 dpi, copy)
- Scan speed with Single Pass DADF-F1 (BW / color, Letter)
- Duplex: up to 120 / 120 ipm (300 dpi, send), 60 / 60 ipm (600 dpi, copy). Single-sided: up to 80 / 80 ipm (300 dpi, send), 60 / 60 ipm (600 dpi, copy)
- Document feeder
- Choose one: Single Pass DADF-E1 (200 sheets, single-pass duplex, optional multi-sheet feed detection), Single Pass DADF-F1 (100 sheets, single-pass duplex), or Platen Cover-Y3
- Scan destinations
- Email, network folders (SMB, FTP, SFTP, WebDAV), USB memory, mobile devices, device mailbox, cloud (uniFLOW Online, Cloud Connector); optional Super G3 fax and IP fax
- File formats
- PDF (Searchable, Compact, Encrypted, PDF/A, Trace & Smooth, digitally signed), XPS (Searchable, Compact), TIFF, JPEG, Office Open XML (Word, PowerPoint)
Paper handling
- Paper capacity (Letter, 20 lb bond)
- Standard 1,200 sheets (two 550-sheet cassettes + 100-sheet multipurpose tray); maximum 6,350 sheets
- Maximum paper size
- 12 × 18 (lower cassette and multipurpose tray); long sheets to 12-5/8 × 47-1/4 with Long Sheet Feeding Tray-A1 and a Staple or Booklet Finisher-AH1
- Media weights
- Cassettes: 14 lb bond to 140 lb index (52–256 gsm). Multipurpose tray: 14 lb bond to 110 lb cover (52–300 gsm). Duplexing: 14 lb bond to 80 lb cover (52–220 gsm)
- Media types
- Thin, plain, recycled, color, heavy, bond, transparency, pre-punched, letterhead, envelope; multipurpose tray adds coated, tracing, and labels
- Paper feeding options
- Cassette Feeding Unit-BB1 (two 550-sheet cassettes, up to 12 × 18); High-Capacity Cassette Feeding Unit-G1 (2,450 sheets, Letter); Paper Deck-F3 (2,700 sheets, Letter); Cabinet Type-Y
Finishing options
- Internal
- Inner Finisher-N1 (2-tray, 545 sheets, corner and double stapling to 50 sheets, staple-free stapling, optional Inner 2/3 Hole Puncher-D1); Inner 2Way Tray-M1
- External
- Staple Finisher-AH1 and Booklet Finisher-AH1 (2-tray, 3,250 sheets, stapling to 50 sheets, optional 2/3 Hole Puncher Unit-A1; booklet model saddle-stitches to 20 sheets and saddle-folds to 3); Staple Finisher Lite-B1 (1,750 sheets, stapling to 50 sheets)
Connectivity
- Network
- Gigabit Ethernet standard; optional Wireless LAN Board-H1 with 5 GHz license
- USB
- USB 2.0 host, USB 3.0 host, USB 2.0 device
- Operating systems
- Windows, macOS, iOS, iPadOS, Android, Chrome OS
Software and management
- Workflow and cloud
- Optional uniFLOW Online for task management and cost tracking; optional Cloud Connector for print and scan to cloud storage services; optional Authorized Send
- Fleet management
- imageWARE Enterprise Management Console: monitor status and supplies, apply security settings, update firmware, and capture meter readings remotely
- Firmware
- Canon Unified Firmware Platform (UFP) — regular updates can add functionality over the life of the device
Security
- Authentication
- PIN, username/password, picture, card, and mobile login; Department ID; Access Management System; optional uniFLOW Online
- Device security
- Security Environment Estimation; Verify System at Startup with automatic boot recovery; FIPS 140-3 storage encryption; Trellix™ Embedded Control application whitelisting; optional Memory Mirroring Kit-A2 for SSD mirroring
- Network and auditing
- TLS and IPsec, IEEE 802.1X, SNMPv3, IP/MAC filtering firewall; audit log and SIEM integration
System
- Memory
- 5.0 GB RAM
- Storage
- 256 GB solid-state drive standard; 1 TB optional
Physical
- Dimensions (W × D × H)
- 22-1/4 × 29-3/8 × 35-3/8 in (565 × 745 × 897 mm) with Single Pass DADF-E1; 22-1/4 × 29-3/8 × 34 in with DADF-F1; 22-1/4 × 29-3/8 × 31 in with Platen Cover-Y3
- Weight
- Approx. 174.2 lb (79 kg) with Single Pass DADF-E1; 157 lb (72 kg) with DADF-F1; 143.3 lb (65 kg) with Platen Cover-Y3 — including 1st Copy Tray Kit-C1 and toner
- Frame
- Canon anti-loosening welded frame for long-term durability
Environmental
- Certifications
- ENERGY STAR® certified; EPEAT Gold
Consumables
- Toner and drum
- GPR-1010 Toner Black; GPR-1010 Drum Unit
Specifications are summarized from Canon's published materials and can change; confirm details on the Canon spec sheet or with our team before ordering.
